Bracket Fits 1969 & Earlier LA Engines (5 Bolt Valve Covers) But MUST HAVE
Factory Power Steering, with or without Factory A/C.
4735 Bracket Fits 1969 & Earlier LA Engines (5 Bolt Valve Covers) But MUST HAVE
Factory Power Steering, with or without Factory A/C.

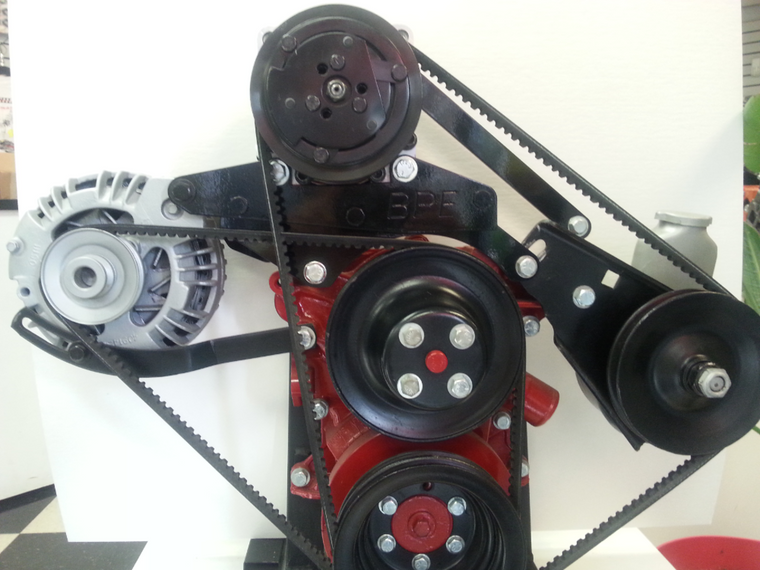

Direct Sanden Replacement Bracket for all 1969 and Earlier LA-Engines (5 Bolt Valve Covers) with or without Factory A/C Pulleys but MUST HAVE FACTORY POWER STEERING. Works with Most All Years of Intakes with Centered, Drivers Side Offset, and Passenger Side Offset Thermostat Housing. Must reuse the Factory Pulleys on the Engine.
Fits: 1969 & Earlier LA-Engines (5 Bolt Valve Covers)
Compressor Required: 504-256 Sanden SD7H
Belt Arrangement:2nd Groove out crankshaft pulley, to Inner Groove on A/C Compressor to Power Steering Pump.
DAMPER REQUIREMENTS: Stock Style Production LA-Engine Damper or HB318 Dampers.
Pulley Requirements: WE DO NOT MAKE ANY 1969 or Earlier LA-ENGINE PULLEYS to Support this Install
Alternator Bracket Requirement:Must reuse Original swing arm adjustment bracket
Alternator Requirement: Standard Style Chrysler Single V Groove like BPE5302
Compressor Required: 504-256 Sanden SD7H
Belt Requirements: A/C belt 7555 or Gates 7555 XL HD 56 1/8" (may differ due to P.S. Pulley Diameter)
Alt Belt 7465 or Gates 7465XL HD 47 1/8"
NOTE: For a Cleaner installation, we recommend mounting the compressor with both suction & discharge ports, pointing towards right side inner fender. Then use a pair of 45 degree fittings (1312-3 & 1313-3) at compressor, and route hoses across top of Alternator.
