12" (302.80mm) x 24" (609mm) x 25-5/8" (650mm) x .71" (18mm) 4 row Parallel Flow Condenser with mounting hardware

Parallel Flow Condenser

$295.00
(No reviews yet) Write a Review
SKU:
404-210PF
Availability:
3
Weight:
10.00 LBS
Minimum Purchase:
1 unit
Maximum Purchase:
3 units
Adding to cart… The item has been added

Universal Parallel Flow Condensers with mounting hardware


Parallel Flow condensers are about 40% more efficient than a standard OEM Tube & Fin condenser. When converting from R12 to R134a using a Parallel Flow model condenser greatly improves performance. Parallel Flow condensers can also be used with R12 and alternative refrigerants.

It should be noted that a "True Parallel Flow" condenser is not the same as a R134a compatible condenser. 6mm dual pass and piccolo R134a compatible condensers. Though better than a standard Tube & Fin condenser. They do not perform as well as the "TRUE Parallel Flow" models we have tested.

Fittings Industry Standard Female O-ring
#8 (13/32) & #6 (5/16th)

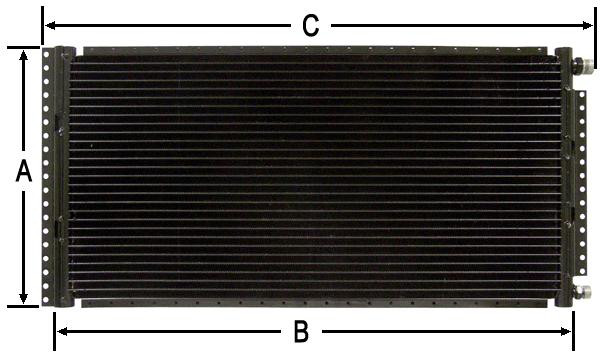

Part Number. A = HEIGHT B = CORE WIDTH C = TOTAL WIDTH CORE DEPTH PASSES
404-210PF 12" (302.80mm) 24" (609mm) 25-5/8" (650mm) .71" (18mm) 4



One Year from Date of Purchase
