12" (302.80mm) x 20" (508mm) x 21-5/8" (549mm) x .71" (18mm) 4row Parallel Flow Condenser with mounting hardware

$185.00
(No reviews yet) Write a Review
SKU:
404-218PF
Weight:
10.00 LBS

Universal Parallel Flow Condensers with mounting hardware


Parallel Flow condensers are about 40% more efficient than a standard OEM Tube & Fin condenser. When converting from R12 to R134a using a Parallel Flow model condenser greatly improves performance. Parallel Flow condensers can also be used with R12 and alternative refrigerants.

It should be noted that a "True Parallel Flow" condenser is not the same as a R134a compatible condenser. 6mm dual pass and piccolo R134a compatible condensers. Though better than a standard Tube & Fin condenser. They do not perform as well as the "TRUE Parallel Flow" models we have tested.

Fittings Industry Standard Female O-ring
#8 (13/32) & #6 (5/16th)

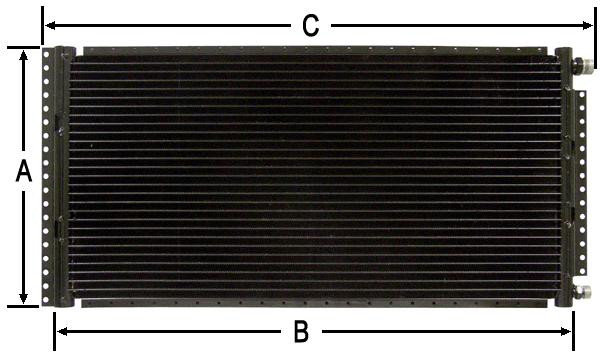

Part Number. A = HEIGHT B = CORE WIDTH C = TOTAL WIDTH CORE DEPTH PASSES
404-218PF 12" (302.80mm) 20" (508mm) 21-5/8" (549mm) .71" (18mm) 4
