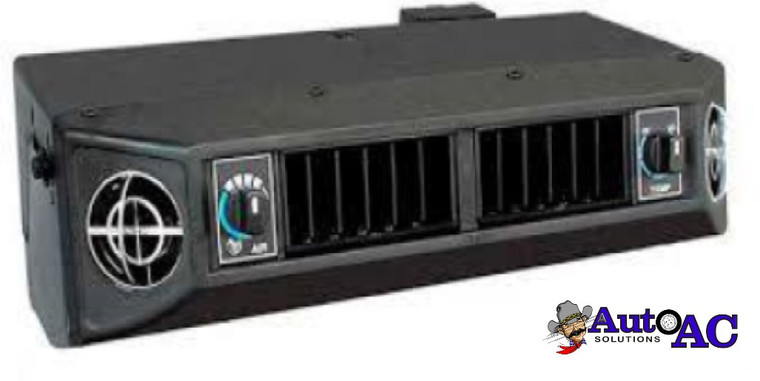

High performance a c evaporator for mounting under the dash. Evaporator also available with black front and with fittings on the back either on the driver or passenger side.

A/C Compressor Mounting Bracket Kit for Slant 6

Fits 170 cu.in./198 cu.in./225 cu.in. Slant Six, Super 6/ Super Six Slant 6 Engines 1961-1986 with Power Steering. Just Add the 504-256 Shorty Double V Groove Sanden Style Compressor  Kit comes with Mount Assembly,  and all Fastener Hardware... Just add 504-256 Compressor & drive belt. Kit Works with Power Steering ONLY.

We build to order just for your vehicle. You can find more on this system or other systems by going to our website. If you have any questions, please call us at 1(940)-549-0288 or email us at JW@amcmfg.com

As a systems manufacturer and distributor for over forty-five years we strive to bring you the coolest AC for the hottest price. All of our systems are custom built to order and so please allow up to four days from date of order to shipping depending on the time of the year.

 With the years of experience, we can put AC in most any vehicle as long as room permits, and the vehicle is 12 volts. If this is not the system you need for your vehicle just let us know and we will let you know if one can be built for specifically for your vehicle.

In dash factory look-a-like systems available as well. Just let us know if you would like to see if a system will work on your vehicle.

All parts are newly manufactured parts and come with a one year warranty.

 System has three speeds and evaporator measures 17" long x 4-7/8" high x 11.75" deep. Max Air Volume is 265 C.F.M. and Cooling Capacity is 16,500 BTU with airflow going across a high efficiency, 32 pass coil giving maximum cooling capacity. This unit will work on any vehicle where room permits.  System will work with any approved refrigerants including R12 or 134a.  Heat Cool upgrade available for an additional $150.00.

COMPRESSOR

SD 507 SANDEN TYPE 2A Groove 12v

 serpentine clutch available upon request

Works: Slant 6 170 cu.in./198 cu.in./225 cu.in. Engines 1961-1986 with Power Steering

Pulleys Required: Must Have Factory Power Steering or the original Factory Bolt on Single Groove Crankshaft P.S. Pulley

14" x 18" High Performance Parallel Flow Condenser

EVAPORATOR UNDER-DASH

HIGH-QUALITY CASE 17" long x 4-7/8" high x 11.5"

32 pass 4 way all Aluminum coil

2 Ton Expansion valve

Thermostat and rotary 3-speed blower switch

16,500 BTU capacity

265 CFM

HOSES

#6   5/16 = 6 FT

#8 13/32 = 4 FT

#10 1/2 = 5 FT

 Longer hoses available at additional cost

This kit includes a complete FITTING With FERRULES

FILTER DRIER

 WITH HI/LOW Binary PRESSURE SWITCH
